| Specification | Details |
|---|---|

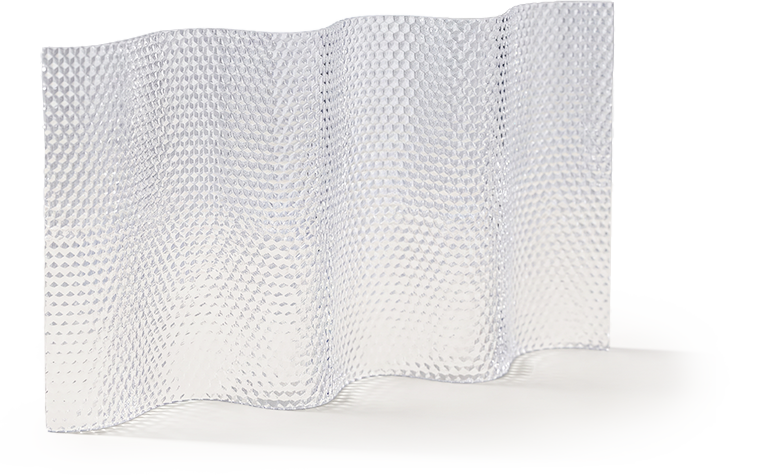

| Product | Solid CR Prism |
| Thickness | 2.6 mm |
| Sheet Width | up to 1045 mm |
| Finish | Prism/Diamond Embossed |
| Profile | Corrugated |
| Applications | Rooflights, vertical glazing, canopies, walkways |
| Properties | Test Method | Value | Units | |
|---|---|---|---|---|
| Mechanical | Tensile Strength at yield | DIN 53455 | 62 | MPa |
| Elongation at break | DIN 53455 | >70 | % | |
| Physical | Density | DIN 53455 | 1.2 | g/cm³ |
| Thermal | Working temperature | iso 75-2:2013 | -40 ~ 120 | °C |
| Liner thermal expansion | DIN 53452 | 6.5 x 10⁻⁵ | m/m.K | |
